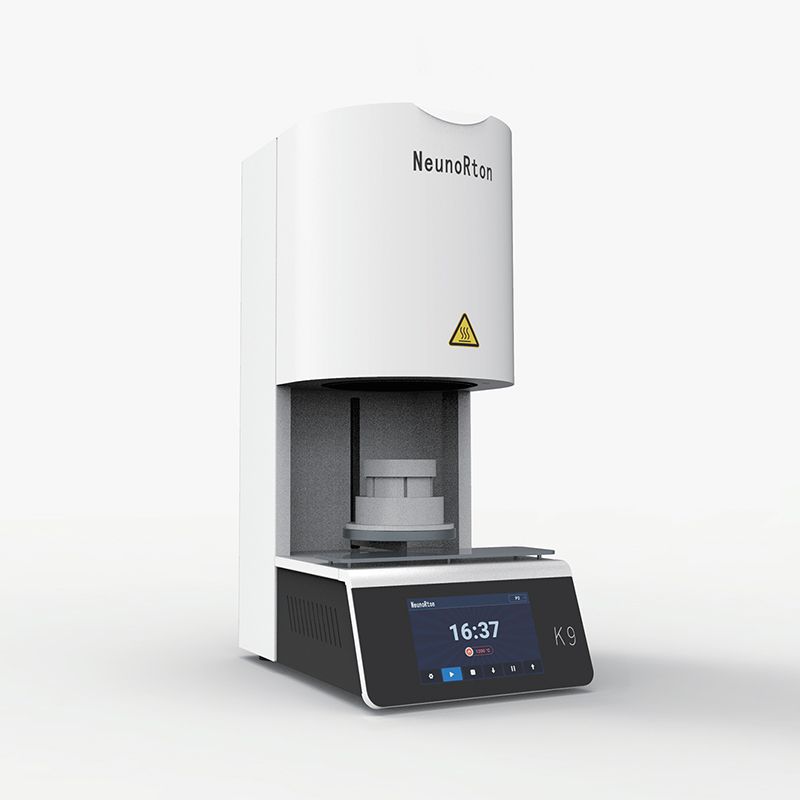

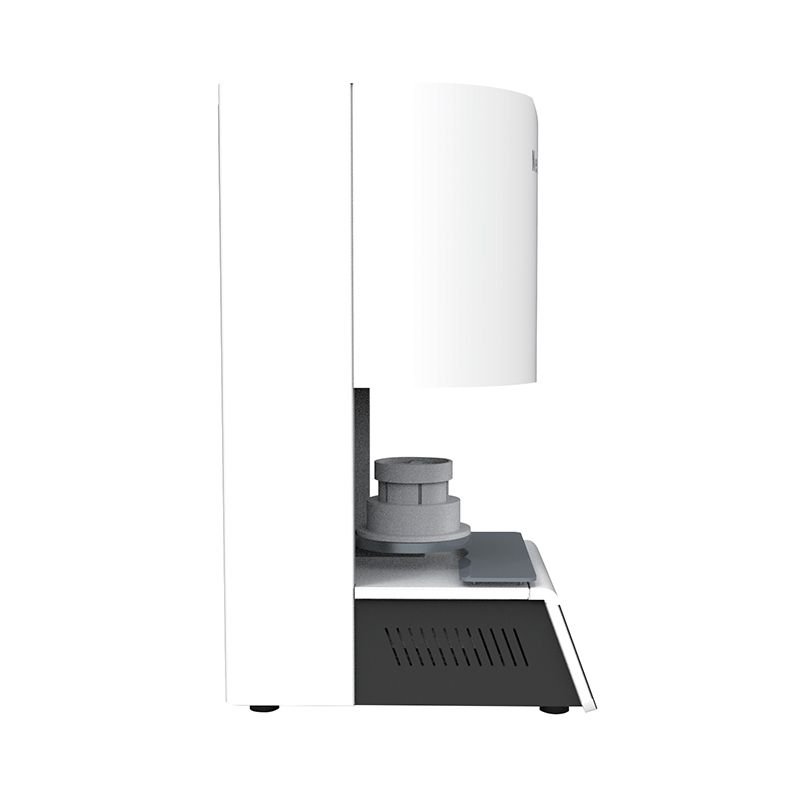

Sintering Furnace
Sintering Furnace
K9

Ultra-fast Sintering

7"HD touch screen

PID intelligent temperature control

Heating rate <200°c/min

Fastest sintering time: 40 minutes

Can be siterea at one time

*10 single dental crowns,5 per layer

*4 three-piece bridge crowns, 2 per layer

*2-piece four-piece bridge crowns, 1 per layer

Ultra-fast Sintering
Ultra-fast Sintering
Ultra-fast Sintering
Ultra-fast Sintering
Ultra-fast Sintering
Ultra-fast Sintering
Product Specification
Dimension400mmx305mmx690mm
Weight 50KG
Voltage 220V 50/60Hz or 110V 50/60Hz
Rated power 2500W
Maximum sintering temperature 1700°C
Fastest heating rate <20oc/min
Temperature control accuracy ±1°C
Touch screen 7"HD touch screen
Crucible size diameter* height =7Omm* 30mm,up to tow layers of crucibles can be placed;


Product Features

1.Dental specialized silicon-carbon rods that never pollute teeth, with a fast heating rate of up to 200°C/min;

2.High-purity insulation with no pollution, ensuring uniform temperature and preventing under-sintering, color materials distortion, and other issues;

3.PID intelligent temperature control with high accuracy, maintaining temperature control accuracy within 士1°C;

4.Power-off memory function enables the machine to resume work from any temperature on any curve;

5. Long warranty period with a half-year warranty for vulnerable parts and a one-year warranty for the entire machine;

6. Rapidly cool from 1ooo degrees directly to the bottom. During the cooling stage, the furnace chamber is automatically opened in sections.

7. Large furnace capacity: The furnace can accommodate two layers of crucibles simultaneously; Crucible dimensions: Diameter x Height = 70mm x 30mm;

8. Single sintering process, allowing for the placement of 10 single crowns at a time, All the teeth are within 4 connection units.
