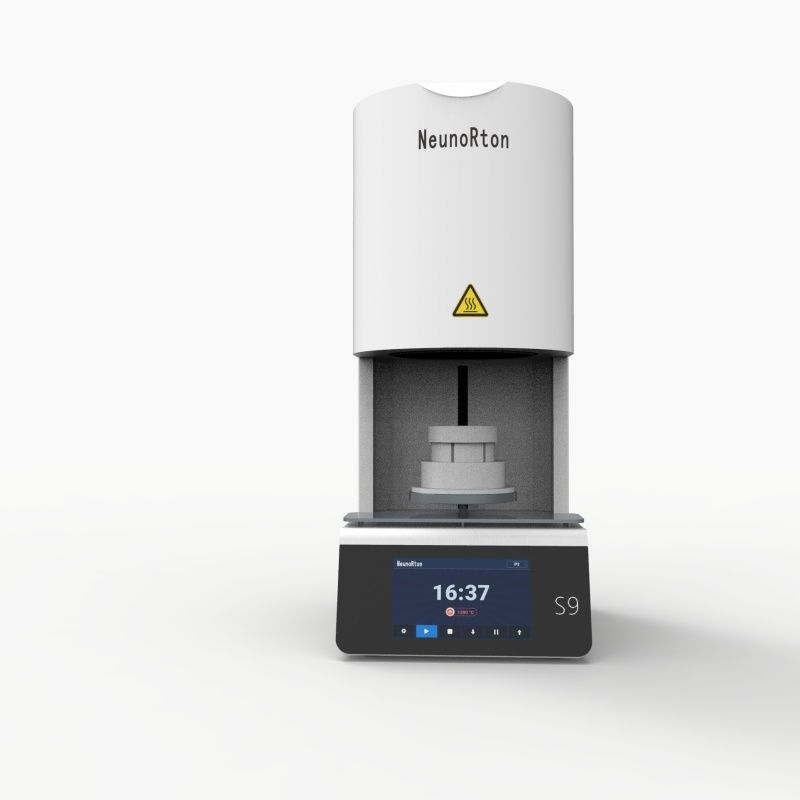

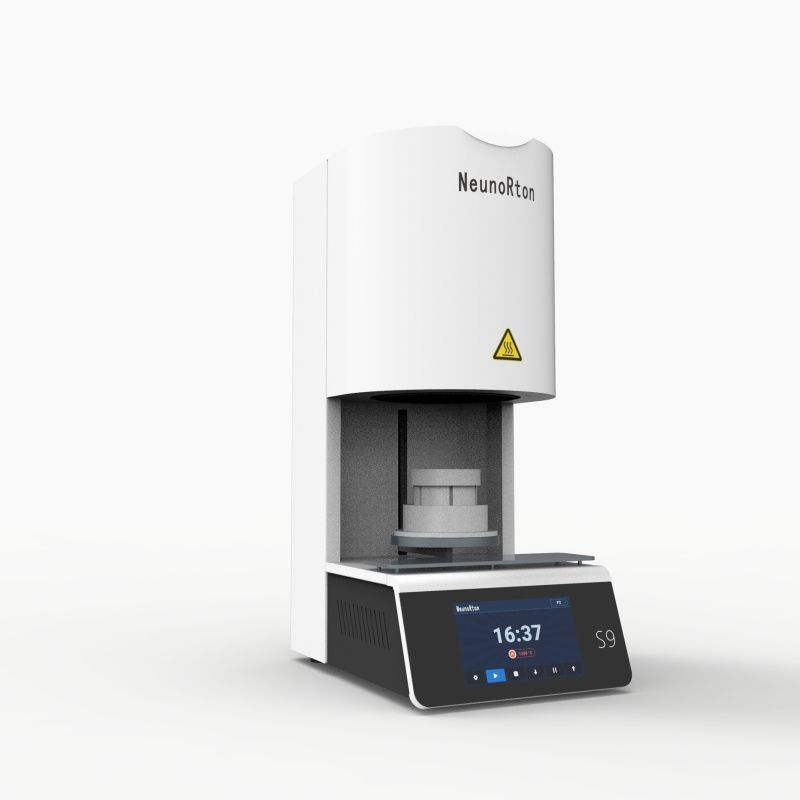

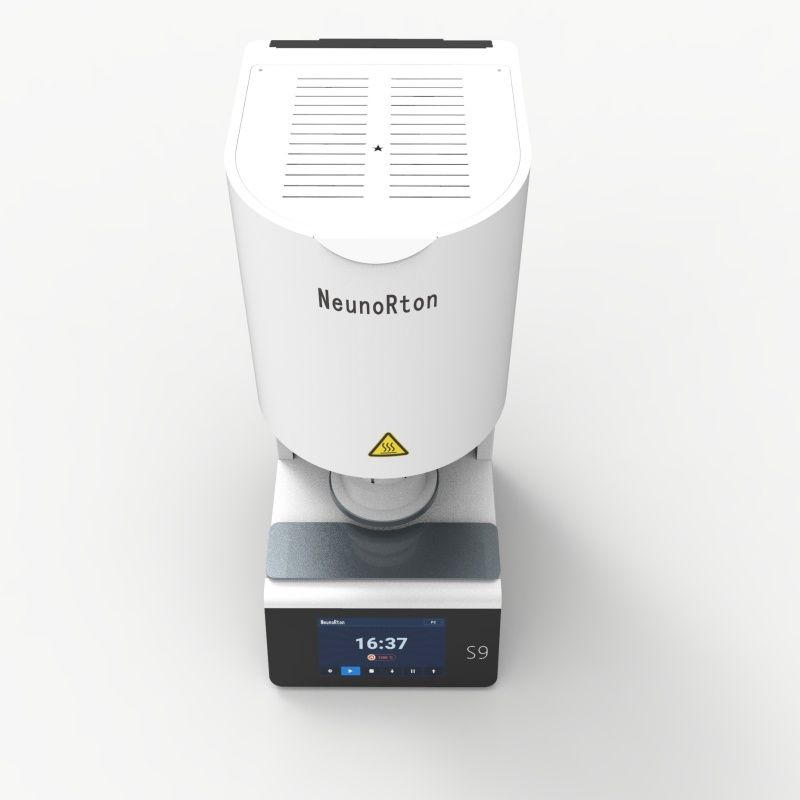

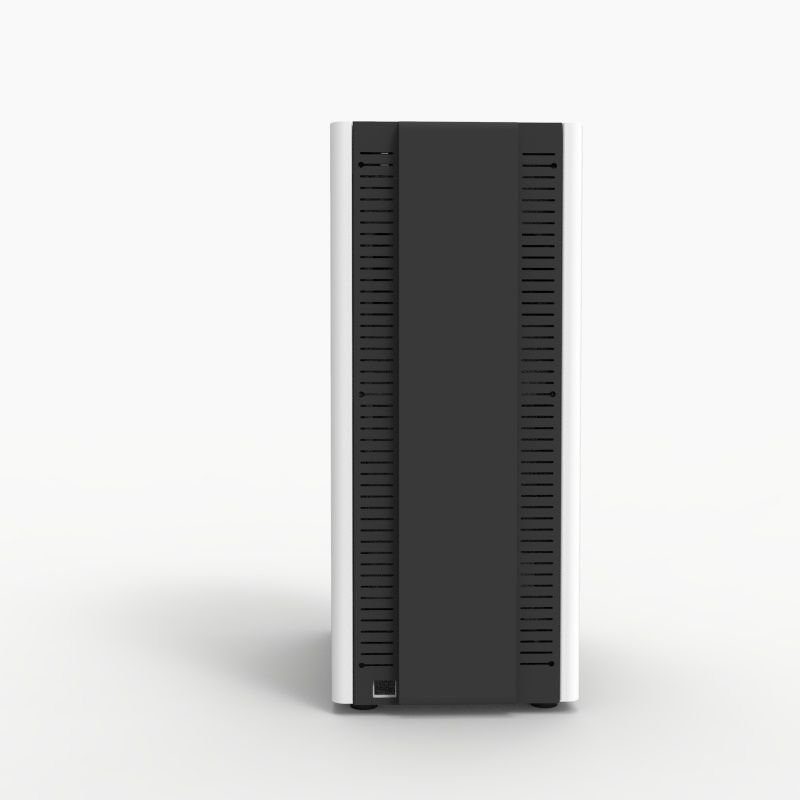

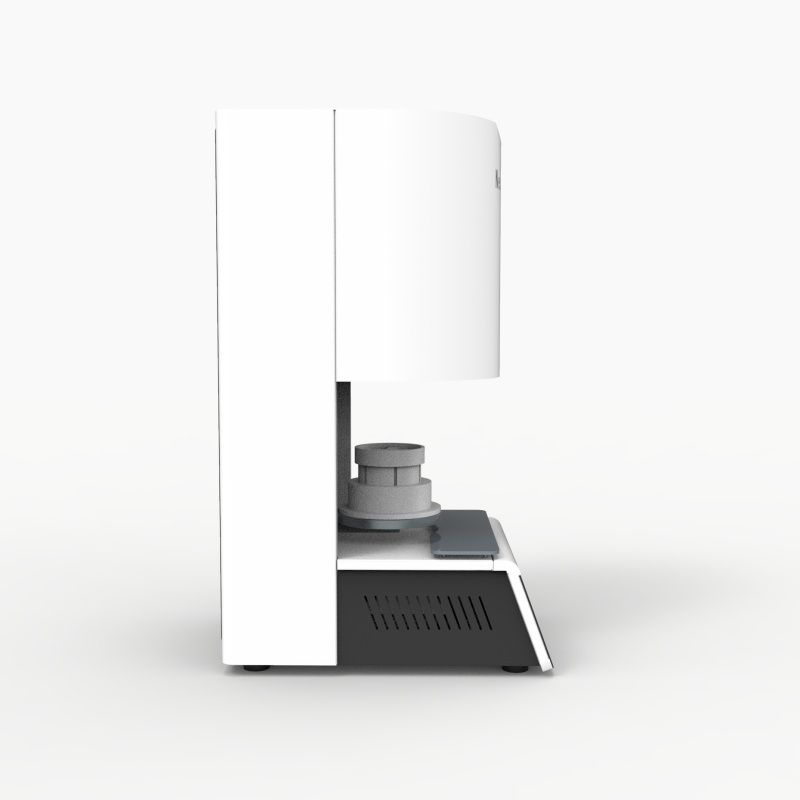

Sintering Furnace
7 "HD touch screen
PID intelligent temperature control
Heating rate <100°C/min
The fastest sintering time: 2hours (including temperature rise, heat preservation and temperature drop)
| Dimension | 498mmx346mmx811mm |
| Weight | 70KG |
| Power Supply | 220V 50/60Hz 110V 50/60Hz |
| Maximum Power | 2500w |
| Maxmum Sintering Temperature | 1700°c |
| Heating Rate | ≤100℃/min |
| Temperature Control Accuracy | ±1℃ |
| Crucible Size | Diameter * height =100mm*35mm can put up to 3 layers of crucible |
7"HD touch screen
Heating rate: <100℃/min
Maximum sintering temperature: 1700℃
100 programs, Preset common zirconium block program
PID intelligent temperature control, high temperature control accuracy,temperature control accuracy of ±1℃
Large furnace capacity: the furnace can accommodate three layers of crucible at the same time;
Heating rate <100℃/minThe fastest sintering time:
2 hours (including temperature rise, heat preservation and temperature drop)
Heating element: dental special high purity silicon molybdenum rod, no pollution. Insulation material: dental special high purity 1800 aluminum silicate ceramic fiber
